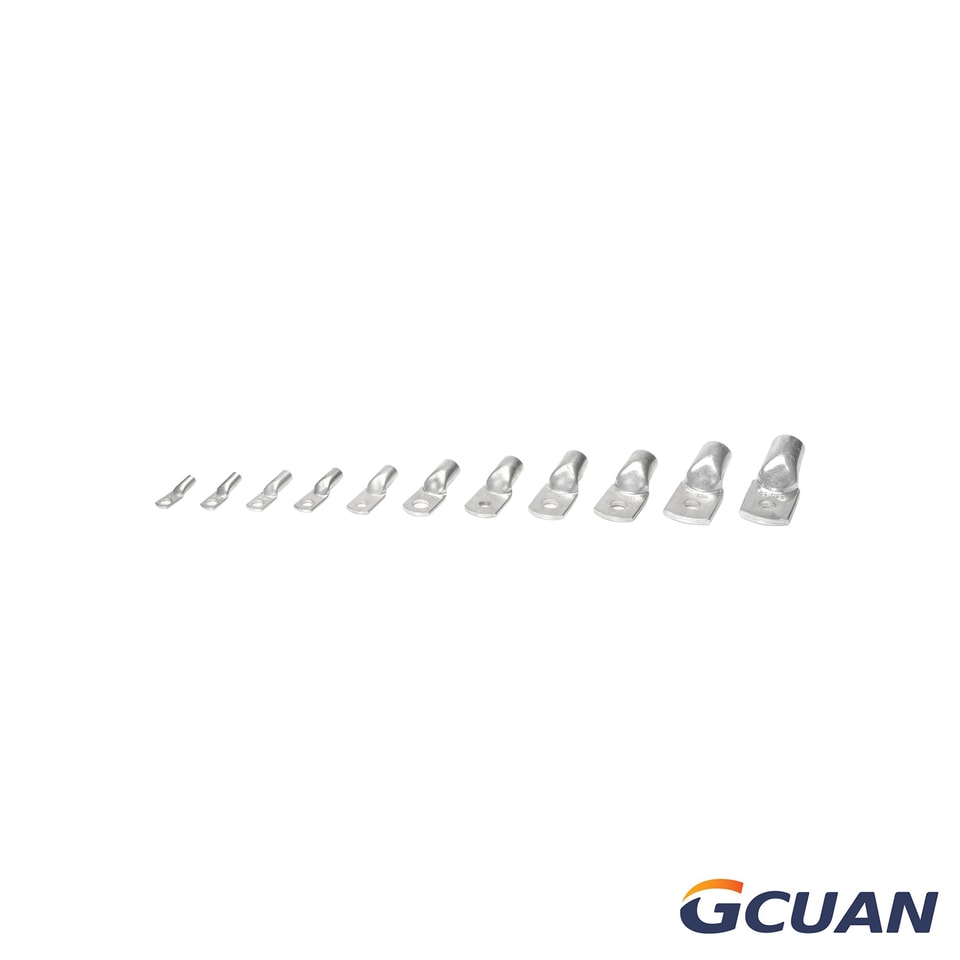

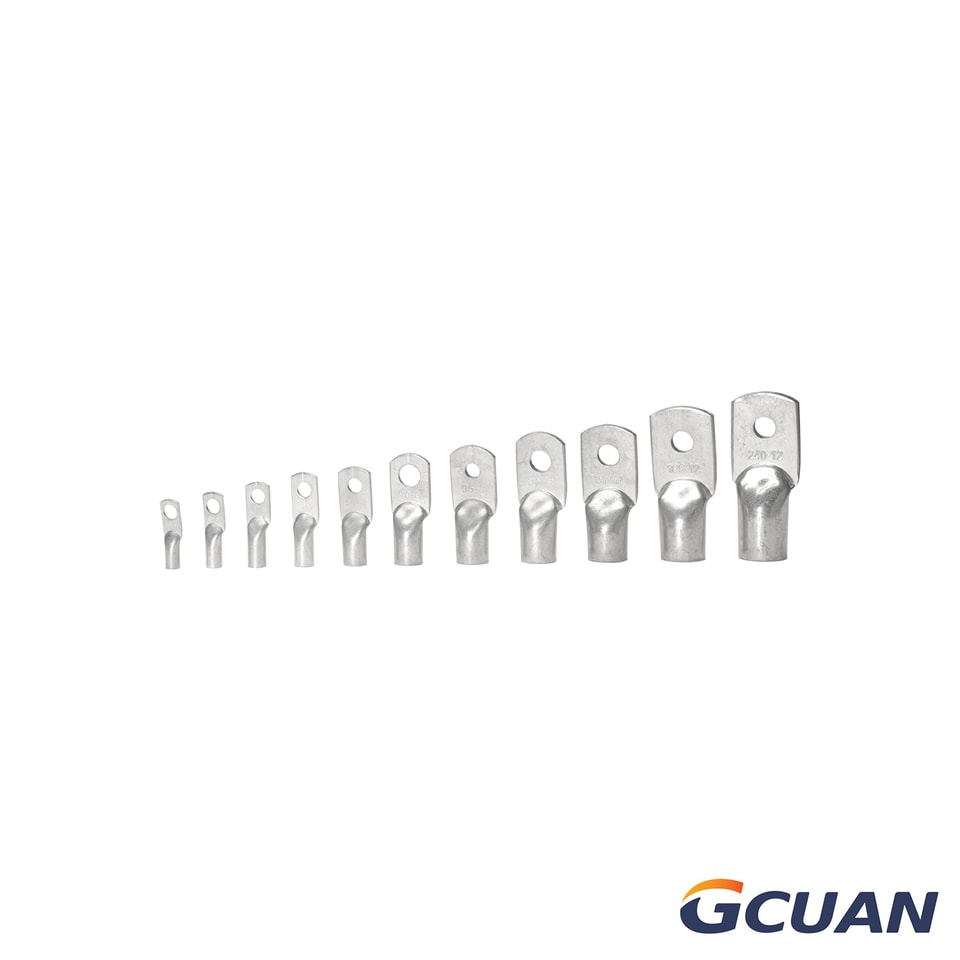

Terminal de cabo de cobre JG

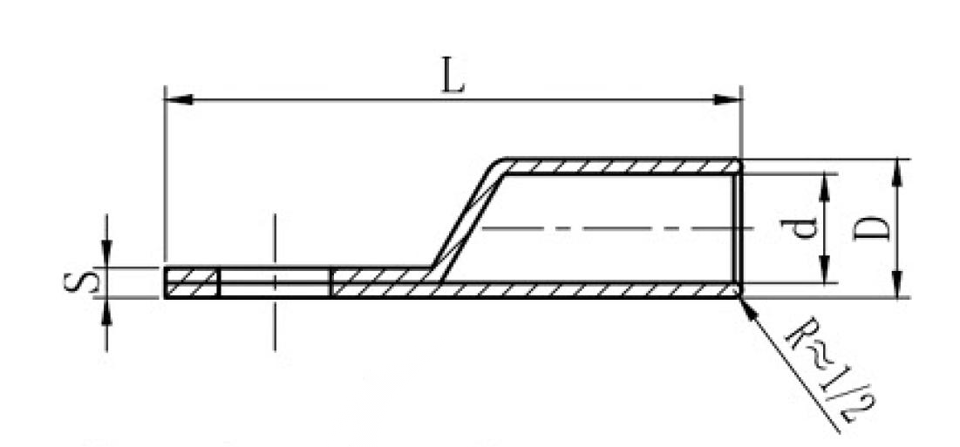

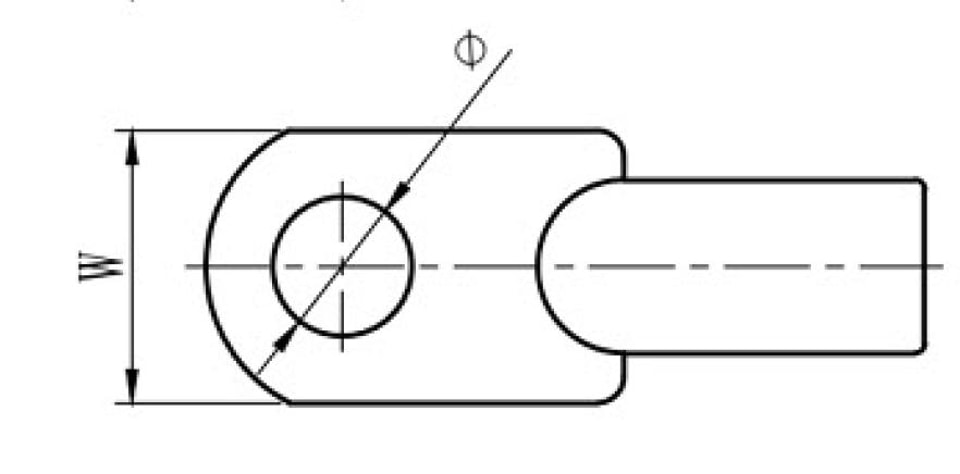

Tipo

Φ

D

d

L

W

S

JG-10-8

8

8

6

38

12

2

JG-16-8

8

9

7

41

13.5

2

JG-25-8

8

10

7.8

46

14.5

2.2

JG-35-8

8

11

8.8

52

16.5

2.2

JG-50-8

8

13

10.6

54

18

2.4

JG-70-8

8

16

12.8

61

23.5

3.2

JG-95-8

8

18

14.8

66

26.5

3.2

JG-120-12

12

20

16

73

28.5

4

JG-150-12

12

22

18

77

32.5

4

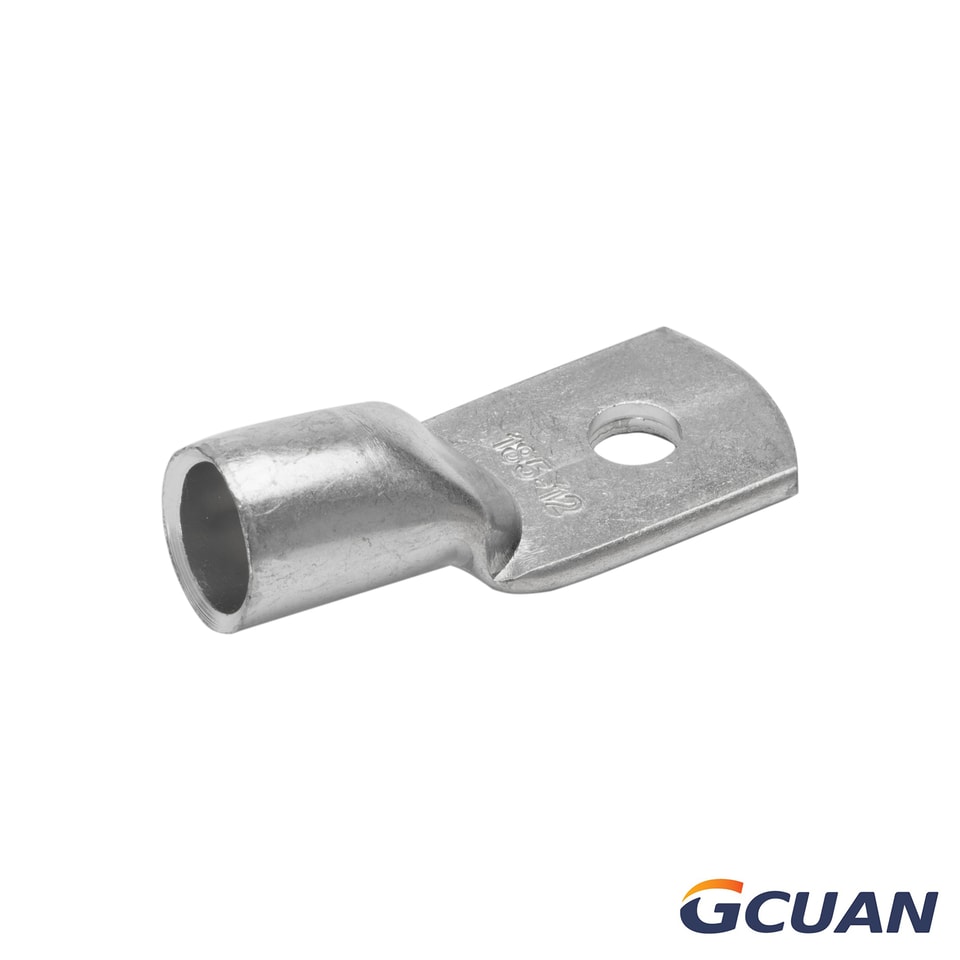

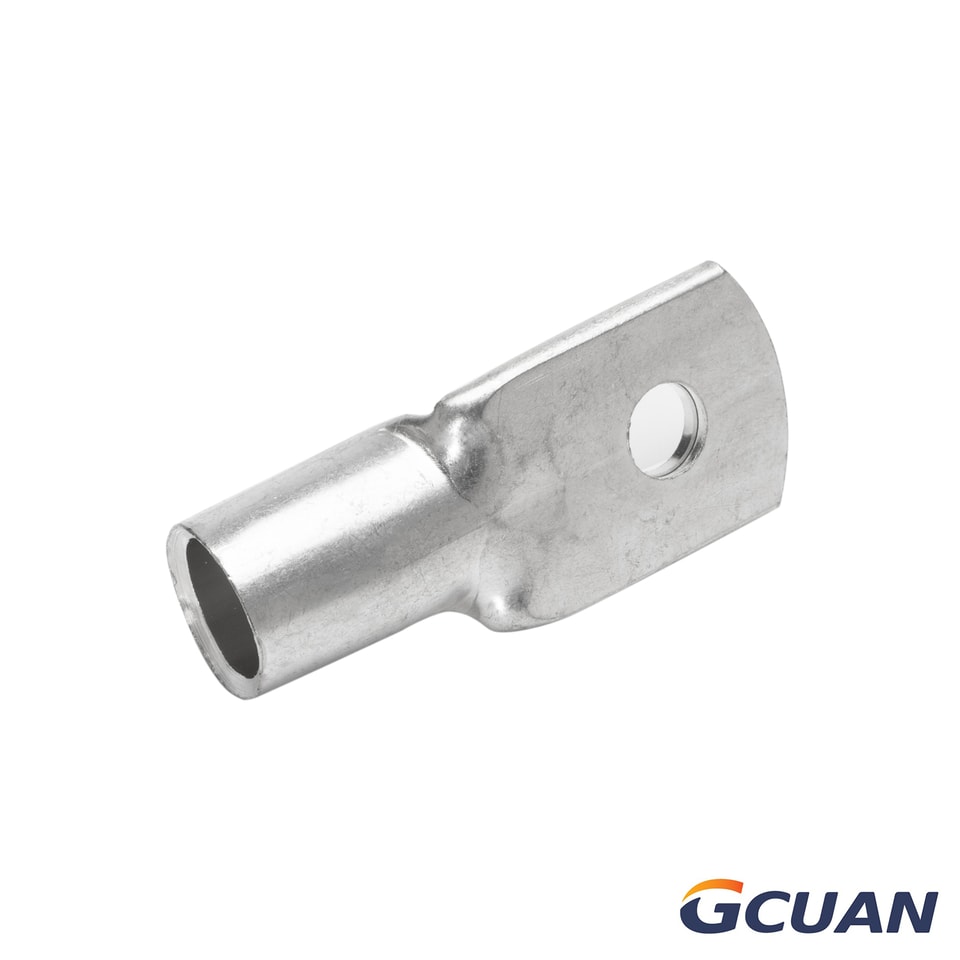

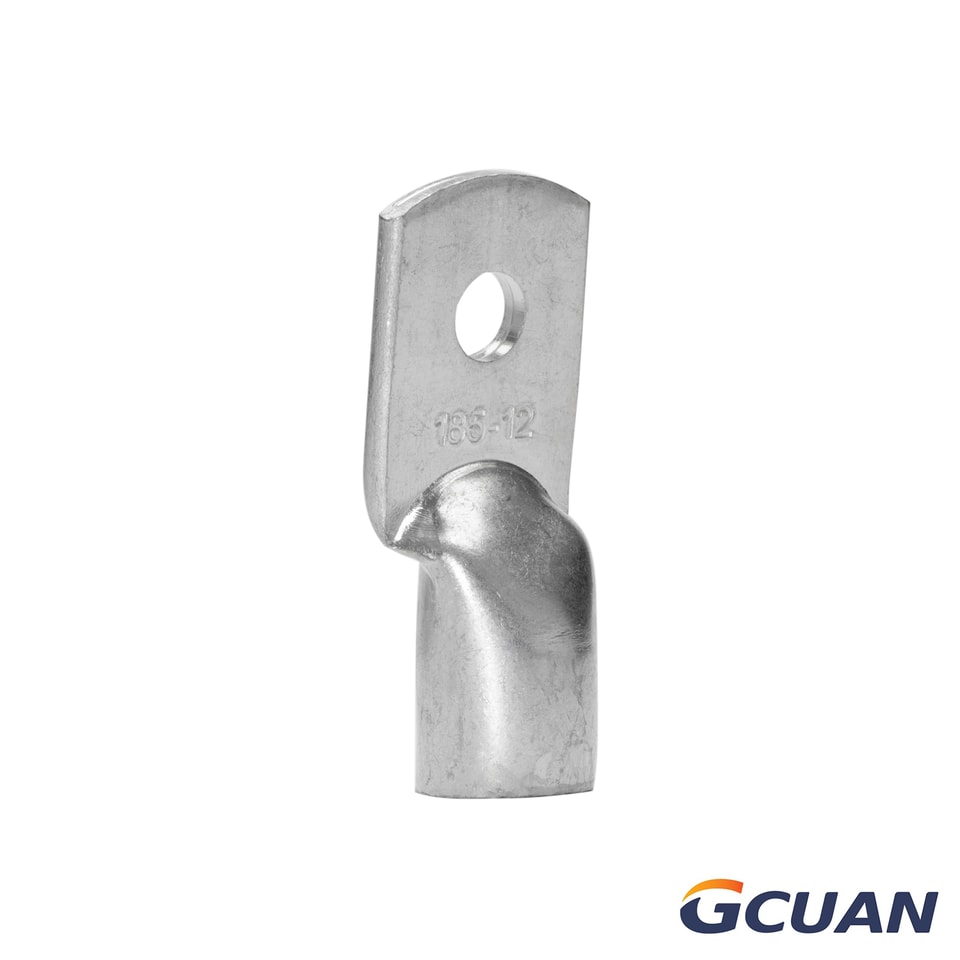

JG-185-12

12

25

20

86

36.5

5

JG-240-12

12

27

21

92

39

5.6
